Slotted-Track-1000x600

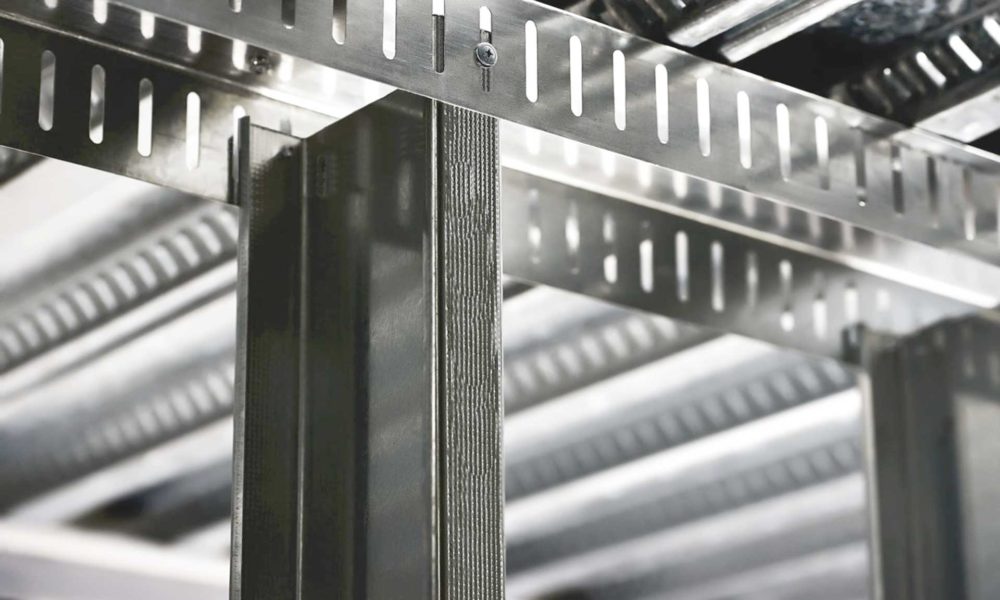

Dass Slotted Track System

DASS slotted track is designed to accommodate wall deflection in both loadbearing and non-loadbearing applications. Slotted track leg height is 2-1/2” and allows for deflection through its prepunched 1-1/2” slots along both flanges of the track. The slots are spaced at 1” on center to allow for maximum flexibility. Slotted track is fast and economical reducing labour cost and material required while accommodating deflection requirements in virtually all applications.

Slotted track is available in: 2-1/2” 3-5/8” 6” 8” 10” and 12” widths in thicknesses from .018 to .097.

STEEL FRAMING SIZING

STANDARD WEB SIZES

1 5/8
2 1/2
3 5/8
6
8
10
12

FLANGE SIZES

1 1/4
1 5/8
2
2 1/2
3

THICKNESSES AND COATINGS

DESIGNATION
THICKNESS (MILS)
MINIMUM
THICKNESS (IN)
DESIGN
THICKNESS
GALVANIZED
COATING
GAUGE
REFERENCE ONLY
18 0.0179 0.0188 G40 25 GA
33 0.0329 0.0346 G60 20 GA
43 0.0428 0.0451 G60 18 GA
54 0.0538 0.0566 G60 16 GA
68 0.0677 0.0713 G60 14 GA
97 0.0966 0.1017 G60 12 GA

DESIGN AND ENGINEERING STANDARDS

ASTM 1003   Standard specification for steel sheet coated and metallic coated for cold formed framing members
ASTM A653   Standard specification for steel sheet zinc coated (galvanized) by the hot-dip process
ASTM A792   Standard specification for zinc coated steel by the hot dipped process
ASTM C645 Standard specification for non structural steel framing members
ASTM C754   Standard specification for installation of steel framing members
ASTM C1047 Standard specification for trims and accessories
